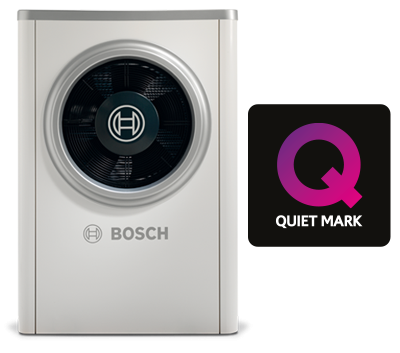

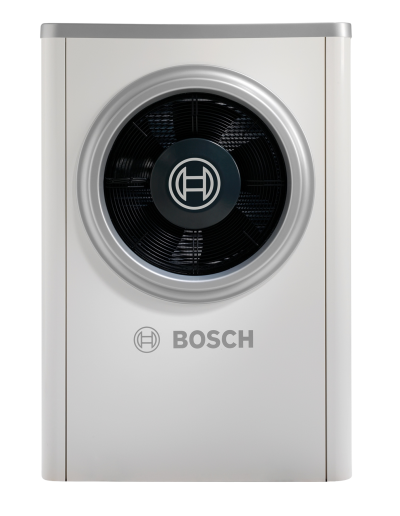

Compress 7001i AW overview
Features & Benefits
|
7001iAW outputs between 5kW and 17kW
|
A+++ at 35 degrees flow for heating
|
Cooling mode from 15°C to 45°C (outside temperature) and Heating mode from -20°C to 35°C (outside temperature)
|
|
Low maintenance with hermetically sealed refrigeration circuit
|
No requirement for Glycol to be used
|
Drain tray and coastal protection included as standard
|
|
A CR10H remote room controller is available for additional user convenience and comfort
|
Optional 50 litre buffer vessel available if required
|
Technical details
CS7001iAW 5 OR-S
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 5.32
- Coefficient of Performance (COP) at +7 / W35
- 4.69
- Sound pressure level at a distance of 1 m dB(A)
- 39
- Sound Power Level Outdoors (dBA)
- 47
CS7001iAW 7 OR-S
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 6.26
- Coefficient of Performance (COP) at +7 / W35
- 5.31
- Sound pressure level at a distance of 1 m dB(A)
- 39
- Sound Power Level Outdoors (dBA)
- 47
CS7001iAW 9 OR-S
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 8.95
- Coefficient of Performance (COP) at +7 / W35
- 5.02
- Sound pressure level at a distance of 1 m dB(A)
- 40
- Sound Power Level Outdoors (dBA)
- 48
CS7001iAW 13 OR-S
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 13.07
- Coefficient of Performance (COP) at +7 / W35
- 4.68
- Sound pressure level at a distance of 1 m dB(A)
- 47
- Sound Power Level Outdoors (dBA)
- 55
CS7001iAW 17 OR-T
- Energy Efficiency Class (35°C)
- A+++
- Energy Efficiency Class (55°C)
- A++
- Water Heating Efficiency Class
- N/A
- Water Heating Declared Load Profile
- N/A
- Heating Power at A2 / W35
- 11.71
- Coefficient of Performance (COP) at +7 / W35
- 5
- Sound pressure level at a distance of 1 m dB(A)
- 45
- Sound Power Level Outdoors (dBA)
- 53
Sound power level in accordance with EN 12102
Fuse class gL/C
