Greenstar Ri (27kW and 30kW) Professional

Greenstar Ri (27kW and 30kW) overview

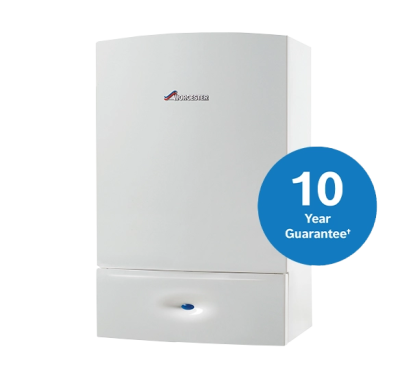

Our higher output Greenstar Ri boiler is a compact, wall mounted boiler that is perfect for medium and large-sized homes.

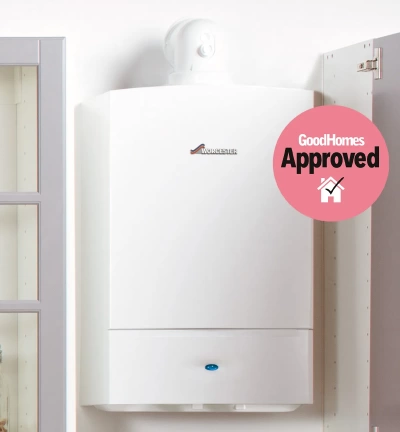

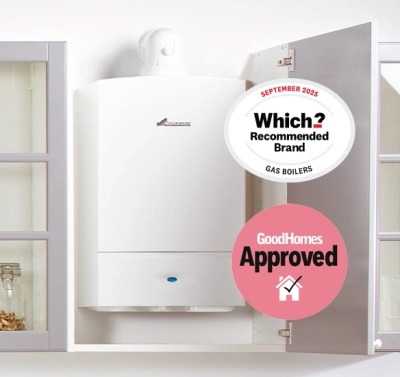

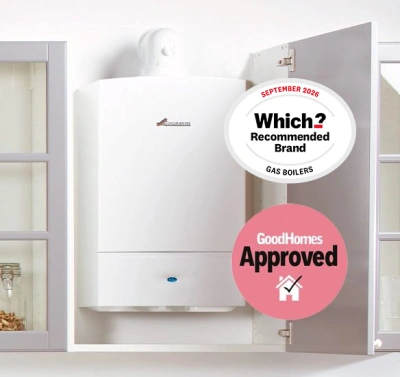

Small enough to be installed in a standard kitchen cupboard, this boiler can be used with our range of high efficiency Greenstore cylinders for a complete Worcester system solution for your home.

Features & Benefits

Compact – Fits inside a standard kitchen cupboard^ Worktop must be removable^	Convenient - Pre-formed flow and return pipes included	Compatible – Combine with solar panels for added efficiency
Flexible – Wide operating pressure range	All-in-one– Works with our Green Storage cylinders for a full solution

Technical details

Greenstar 27Ri

ErP Efficiency Rating: A
ErP Data Sheet: ErP Data Sheet
Fuel Type: Gas (NG)
Control Options *
EasyControl Compatible ¹
Solar Compatible
Central heating output (kW): 27
Dimensions (mm) height x width x depth: 600 x 390 x 270

Greenstar 27Ri LPG

ErP Efficiency Rating: A
ErP Data Sheet
Fuel Type: Gas (LPG)
Control Options *
EasyControl Compatible ¹
Solar Compatible
Central heating output (kW): 27
Dimensions (mm) height x width x depth: 600 x 390 x 270

Greenstar 30Ri

ErP Efficiency Rating: A
ErP Data Sheet: ErP Data Sheet
Fuel Type: Gas (NG)
Control Options *
EasyControl Compatible ¹
Solar Compatible
Central heating output (kW): 30
Dimensions (mm) height x width x depth: 600 x 390 x 270

Greenstar 30Ri LPG

ErP Efficiency Rating: A
ErP Data Sheet: ErP Data Sheet
Fuel Type: Gas (LPG)
Control Options *
EasyControl Compatible ¹
Solar Compatible
Central heating output (kW): 30
Dimensions (mm) height x width x depth: 600 x 390 x 270

*When an optional Worcester Greenstar Wiring Centre is used

†The Condensesure Siphon has been proven to be effective at preventing frozen condensate at -15°C for a sustained period of 48 hours.

¹ The EasyControl adaptor is required for the Bosch EasyControl to work with our Greenstar regular boilers

Related Accessories

Boiler Accessories	Part number
CondenseSure	7 716 192 746
Flue Gas Heat Recovery Unit	7 733 600 047	Installation Manual
Below boiler pipe cover	7 716 192 608
Greenstar Comfort wall mounting plate	7 733 600 039
EasyControl Adapter	7 736 701 560	Installation Manual

Flashing Kits	Part number
Flat roof flashing kit (100mm & 125mm dia.)	7 716 191 090
Pitched roof flashing kit (100mm & 125mm dia)	7 716 191 091

Flue	Part number
Standard telescopic horizontal flue kit (100mm dia)	7 716 191 0822	WallHung	Gas
1000mm extension kit (100mm dia.)	7 716 191 083
90º bend (100mm dia.)	7 716 191 084
Short flue extension, 220mm (100mm dia)	7 716 191 133
2m flue extension (100mm dia.)	7 716 191 172
High level horizontal flue adaptor (100mm dia)	7 719 002 432
High level horizontal flue adaptor (125mm dia)	7 719 002 433
Vertical BF kit (100mm)	7 719 002 4302
Vertical BF kit (125mm)	7 719 002 4312
60/100mm (x2) 45º bends	7 716 191 085
Horizontal flue kit (125mm dia.)	7 719 003 7022
1000mm extension (125mm dia.)	7 719 003 666
45 degree bend (80/125mm dia.)	7 719 003 665
90º bend (125mm dia.)	7 719 003 664
Long telescopic flue kit (100mm dia.) - wall hung boilers	7 716 191 171	WallHung	Gas
Support bracket kit (100mm dia.)	7 716 191 177
Support bracket (125mm dia.)	7 716 191 179
Support bracket 6 pack (100mm dia.)	7 716 191 178
High level horizontal telescopic 60/100mm flue kit	7 733 600 0482
Standard Telescopic Flue & Terminal (White)	7 716 191 082	WallHung	Gas	Installation Manual

Plume	Part number
Gas 45º bend (x2)	7 716 191 089
Gas Plume 90 deg elbow	7 716 191 088
Terminal Guard For Plume Kit Gas	7 716 191 176
Gas Plume management kit	7 716 191 086
